Examination Criteria

Microstation MS01-001 2D Level 1

Objective:

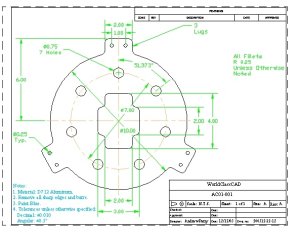

To test an individual's 2D drawing ability and speed of creating a single orthographic view drawing.

Resources:

You will need a Pentium 4 class computer with an Microstation PowerDraft software. Titleblock is provided.

Time:

You have 30 minutes to complete the problem with dimensions, and notes.

Success Criteria:

You must be able to draw a single view problem within 30 minutes. Finish in 15 minutes for a one hundred percent score, to 30 minutes for a eighty-five percent score. You will lose one percent for every minute exceeding 15. You will lose one percent for every error. Passing score is a 85%.

Resource Training:

World Class Cad, Beginning with 2D CAD

Training Plan:

Work through chapters one through seven of the World Class CAD, Beginning with 2D CAD textbook. You may do as many practice problems as you wish.
