Examination Criteria

AutoCAD AC01-003 2D Level 3

Objective:

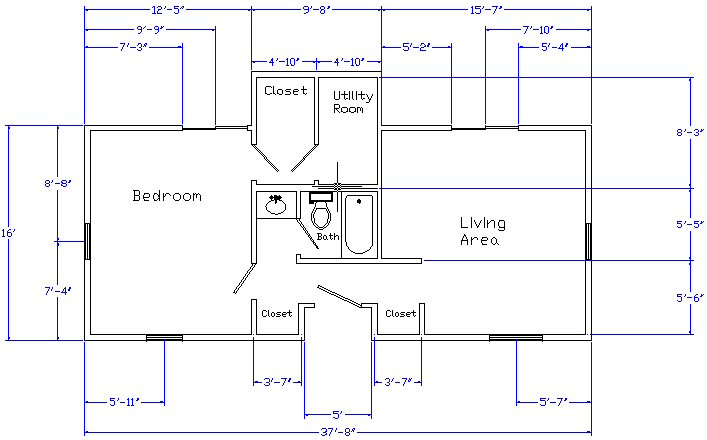

To test your floor plan drawing ability and speed.

Resources:

You will need a Pentium 4 class computer with an AutoCAD 2000, 2002, 2004, 2005, 2006, 2007 or 2008 software. Architectural and titleblocksblocks are provided.

Time:

You have 120 minutes to complete the problem with dimensions.

Success Criteria:

You must be able to draw the problem within 120 minuts. Finish in 60 minutes for a one hundred percent score, to 120 minutes for a eighty-five percent score. You will lose one percent for every four minute exceeding 60. You will lose one percent for every error. Passing score is a 85%.

Resource Training:

World Class Cad, Fundamentals of 2D Drawing

Training Plan:

Work through chapters one through fourteen of the World Class CAD, Fundamentals of 2D Drawing textbook. You may do as many practice problems as you wish.
